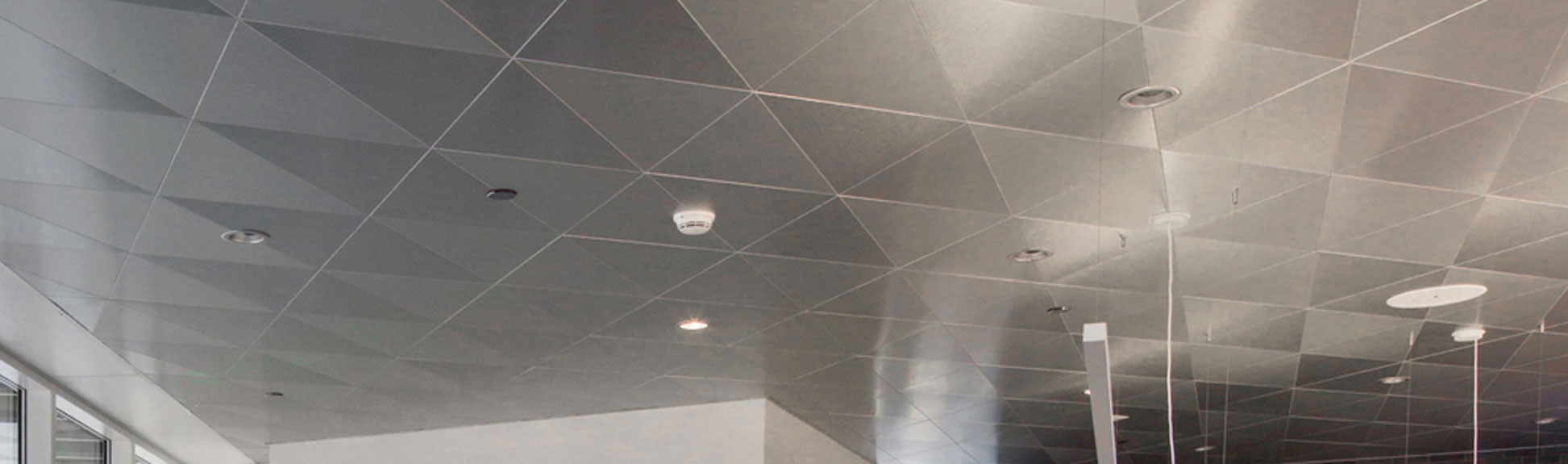

GEOMETRIC PROGRESSION

Triangles, trapezoids, and hexagons create unique aesthetic effects, with swing-down release that allows 100% plenum access.

PRODUCT DETAILS

Two panel size sets:

• 6″ to 36″ widths up to 120″ long
• 48″ width up to 48″ long

Key Features

• Geometrically shaped panels
• Swing-down feature allows point-access and 100% access to plenum
• Square-edge design
• Waste reduction with factory fabricated dimensional material
• Downweight: reduce dead load with lightweight aluminum
• Interior and exterior applications
• Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
• High recycled aluminum content
• No VOCs: No added urea-formaldehyde
• GREENGUARD Gold Certified

Physical Data

• Substrate: Aluminum
• Warranty: 1 year
• Seismic rating: Zones A, B, C, D, E, F
• Fire rating: Class A Fire Rated per ASTM E84
• Painted or anodized metal: Flame spread: < 25, Smoke < 50
• Film on metal: Flame spread: < 25, Smoke < 50
• Weight: Varies 1.0 – 1.5 lbs/sq. ft.
• Wind load: N/A
• Recycled content: Up to 85%
• Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
• Cotton White: LR = 0.81
