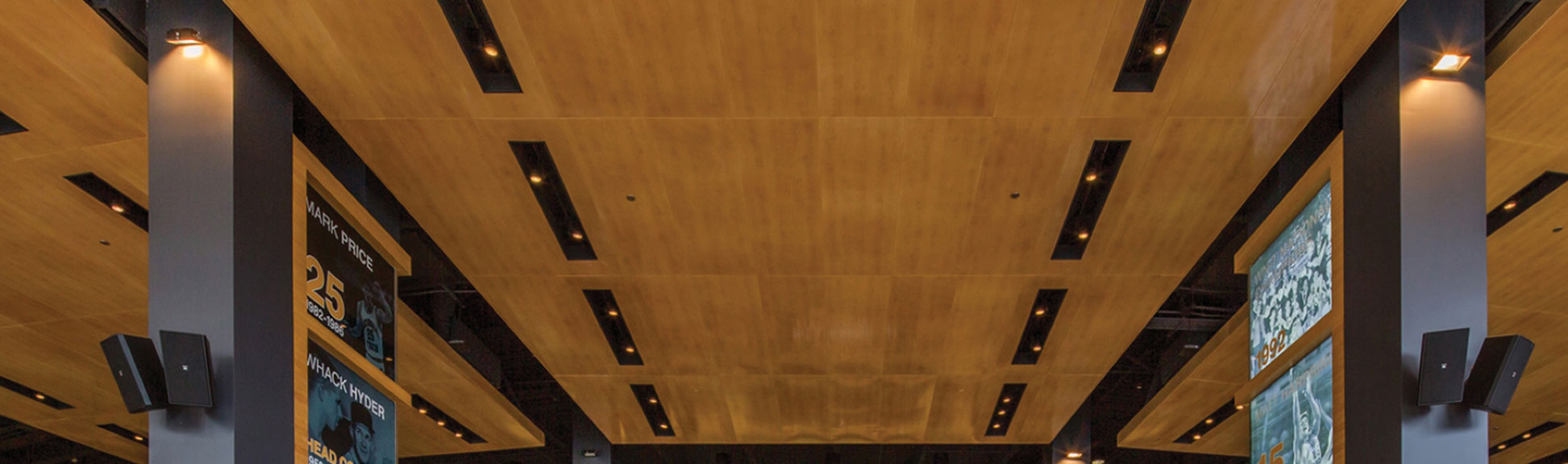

Our Torsion Spring metal ceilings deliver style and ease with its versatile carrier/grid system. Both flat and curved panels swing down ensuring safe access to the plenum making the system the ideal choice for casinos, airports and arenas.

The key feature of this system is the engagement of the torsion spring mechanisms with the main and cross tees, allowing safe point access for sizes up to 36″ x 120″ and 48″ x 48″ in squares.

PRODUCT DETAILS

Two panel size sets:

  • 6″ to 36″ widths up to 120″ long
  • 48″ width up to 48″ long

Key Features

  • Swing-down feature allows point-access and 100% access to plenum
  • Square-edge design
  • Waste reduction with factory fabricated dimensional material
  • Downweight: reduce dead load with lightweight aluminum
  • Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
  • High recycled aluminum content
  • No VOCs: No added urea-formaldehyde
  • GREENGUARD Gold Certified

Physical Data

  • Substrate: Aluminum
  • Warranty: 1 year
  • Seismic rating: Zones A, B, C, D, E, F
  • Fire rating: Class A Fire Rated per ASTM E84
  • Painted or anodized metal: Flame spread: < 25, Smoke < 50
  • Film on metal: Flame spread: < 25, Smoke < 50
  • Wood veneer on metal: Flame spread: < 25, Smoke < 55 (for interior applications)
  • Weight: Varies 1.0 – 1.5 lbs/sq. ft.
  • Wind load: Per code (for exterior applications)
  • Recycled content: Up to 85%
  • Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
  • Cotton White: LR = 0.81

Colors & Finishes

Finish Options
