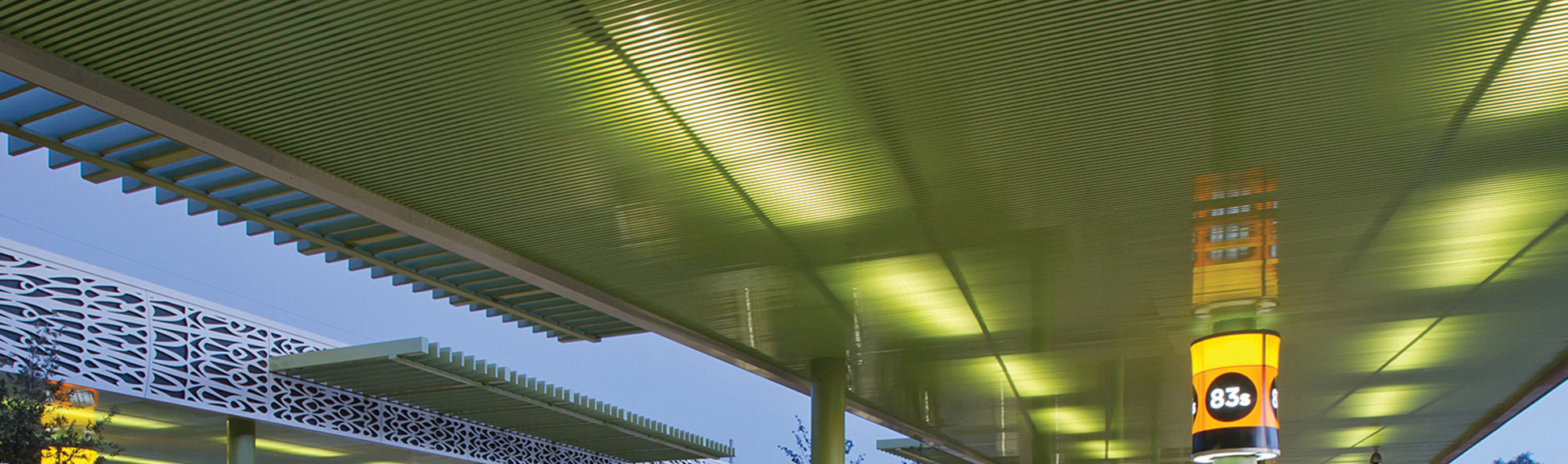

Mixing panel types creates engaging rhythms and textures at the ceiling plane, adding visual interest to exterior soffits.

PRODUCT DETAILS

Panel sizes:

• Panel module widths: 2″, 4″, 6″ and 8″
• Panel lengths: 3′ to 16′

Panel depths (nominal):

• 5/8″ (Box 2, 4, 6 & 8)
• 1-1/2″ (Deep Box 2)
• 1″ (Deep Box 4, 6 & 8)

Key Features

• Square-edge design
• Curved carrier application available
• Waste reduction with factory fabricated dimensional material
• Downweight: reduce dead load with lightweight aluminum
• Easy plenum access
• Interior and exterior applications
• Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
• High recycled aluminum content
• No VOCs: No added urea-formaldehyde
• GREENGUARD Gold Certified

Physical Data

• Substrate: Aluminum
• Warranty: 1 year
• Seismic rating: Zones A, B, C, D, E, F
• Fire rating: Class A Fire Rated per ASTM E84
• Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
• Film on metal: Flame spread: ≤ 25, Smoke ≤ 50
• Weight: Varies 0.5 – 1.0 lbs/sq. ft.
• Wind load: Per code
• Recycled content: Up to 92%
• Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
• Cotton White: LR = 0.81
