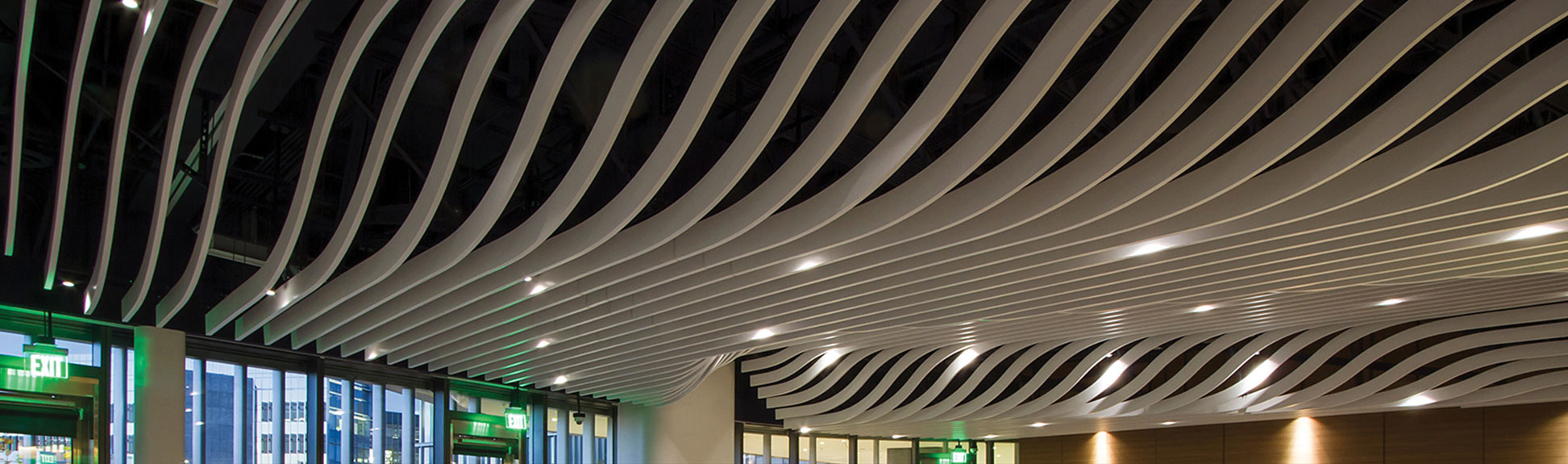

Creating waves across the ceiling plane, the High Profile Series™ Vertically Curved Baffle Ceiling System features versatile, customizable designs. Modern lines and curves make this ceiling ideal for various indoor commercial applications.

HIGH PROFILE SERIES™ - VERTICALLY CURVED BAFFLES

CUTTING-EDGE DESIGN CREATES CEILINGS WITH FLOW.

Our Unistrut® support system and custom fabrication capabilities let ceiling designs feature intriguing combinations of curve arcs and radii, as well as baffle heights and profiles.

PRODUCT DETAILS

Beam Sizes:
Beam Profile

  • 1-1/2″ x 6-3/8″

Note: Client specific shapes and finishes available

Key Features

  • Extruded aluminum profiles with exacting fit and finish
  • Seamless baffles up to 20 feet in length
  • Minimum radius 48″
  • Arc lengths 4 feet to 20 feet
  • Unistrut® support system
  • Client-specific suspension systems
  • Patented locking mechanism
  • Recycled content
  • No VOCs: No added urea-formaldehyde
  • GREENGUARD Gold Certified

Physical Data

  • Substrate: Aluminum
  • Warranty: 1 year
  • Seismic rating: Zones A, B, C, D, E, F
  • Fire rating: Class A Fire Rated per ASTM E84
  • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Weight: Varies 2.0 – 4.0 lbs/sq. ft.
  • Wind load: N/A
  • Recycled content: Minimum of 50%
  • Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
  • Cotton White: LR = 0.81

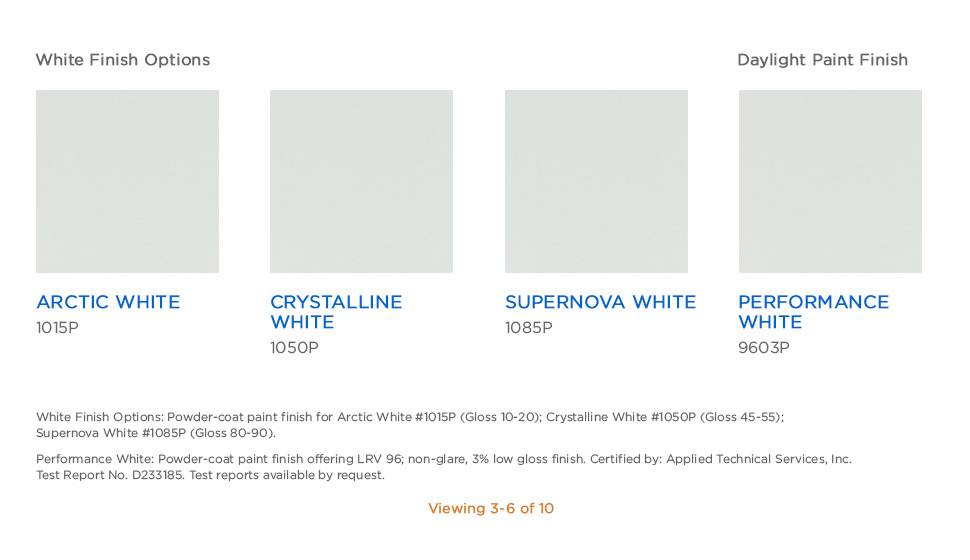

Colors & Finishes

Finish Options
